電控柜

日匯報告:
24h
月匯報告:
30天
影像存儲:
30天
信息匯報: 分日匯報和月匯報,內容包括產能、功耗、工作時長
應用領域: 礦山破碎成套生產線控制及監測
硬件模塊: 中央控制模塊、電控系統、傳感器、信息共享系統
智控 信息共享

備注:?jiǎn)螜C(jī)價格視型號而定,不同的型號,不同的生產能力,價格也是不一樣的。本產品單機參考價格范圍在18~55萬元之間,具體價格,請聯系客服提供具體生產要求,免費獲取方案及報價!

產品簡介

一、產品簡介

山友重工石料破碎PCL高智能系統電控柜,屬于出口型電氣控制系統,采用PLC可編程組件控制,全機觸摸屏操作,一鍵式啟動方式,設備故障自檢,并程序化控制設備啟停。同時系統還可配備電量計量,產量統計等功能,有效對設備產能作出監控。


1、組成部分

該電控柜智能系統分為以下幾個部分:

①中央控制模塊

工業電腦、可編程PLC模塊作為中央處理器,根據破碎機實際情況編寫程序,并處理各個單元傳感器反饋信號,通過觸摸屏實現智能控制和人機互通。

②電控系統

根據控制需要配備每臺設備的啟動、停止控制元件(包括空氣開關、接觸器、軟啟動器、變頻器、熱保護器等)。

③傳感器

用于整套設備的監控系統,包括檢測設備負荷的電流傳感器、檢測軸承溫度的熱敏傳感器、檢測主要設備振動量的傳感器、用于實時監控的影像系統、檢測電量消耗的電能傳感器、檢測產量的壓敏傳感器等。

④信息共享系統

信息生成和發布單元(產量、電能損耗、每天生產時間、故障停機原因自動生成報告,采用信息方式發布到管理員手機上),讓管理員對于設備的狀態一目了然。

2、案例圖片

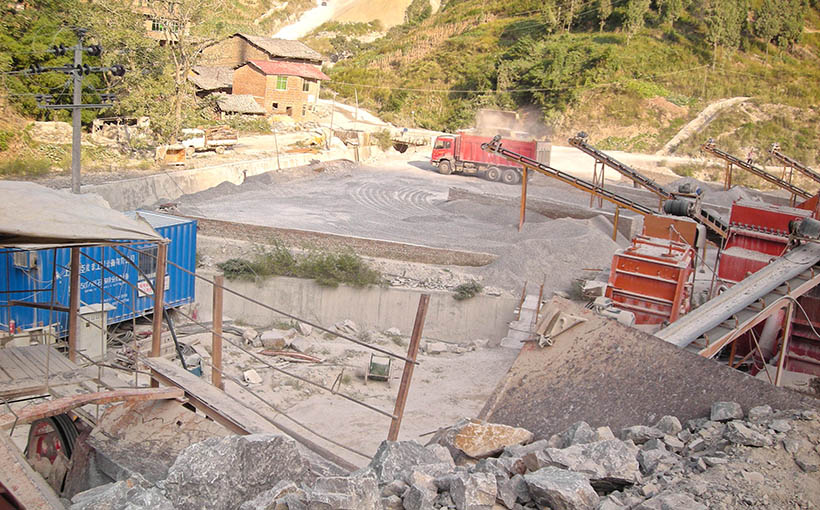

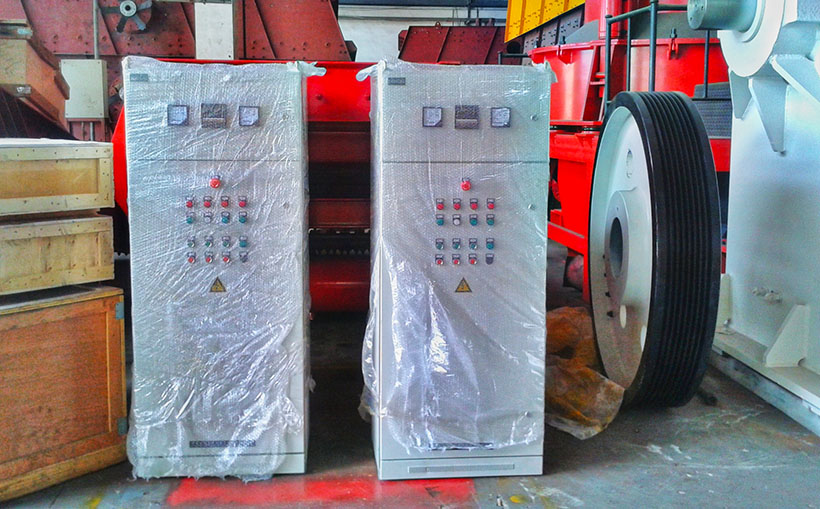

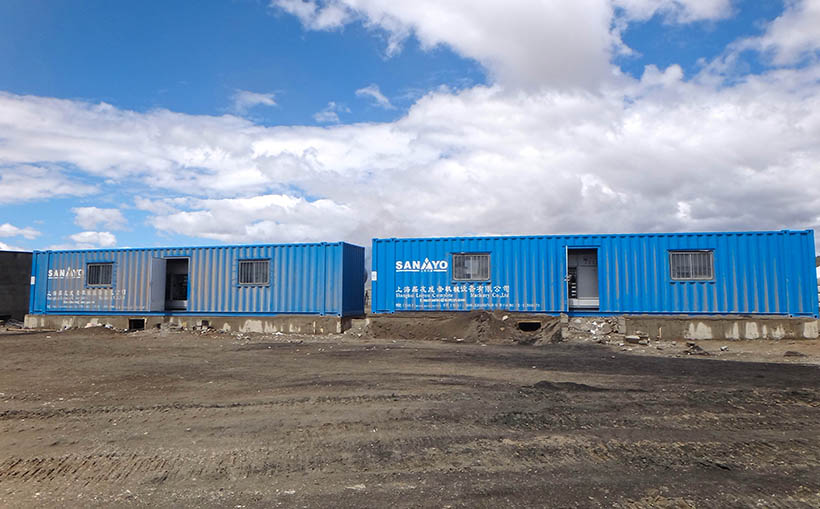

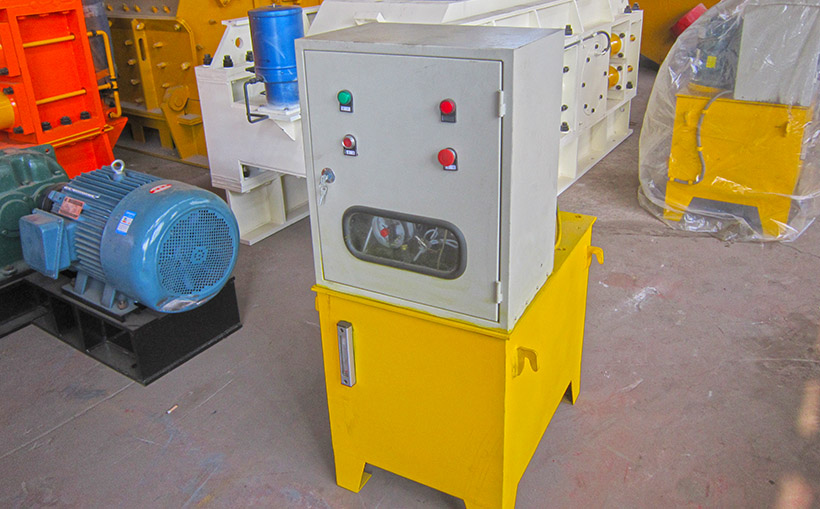

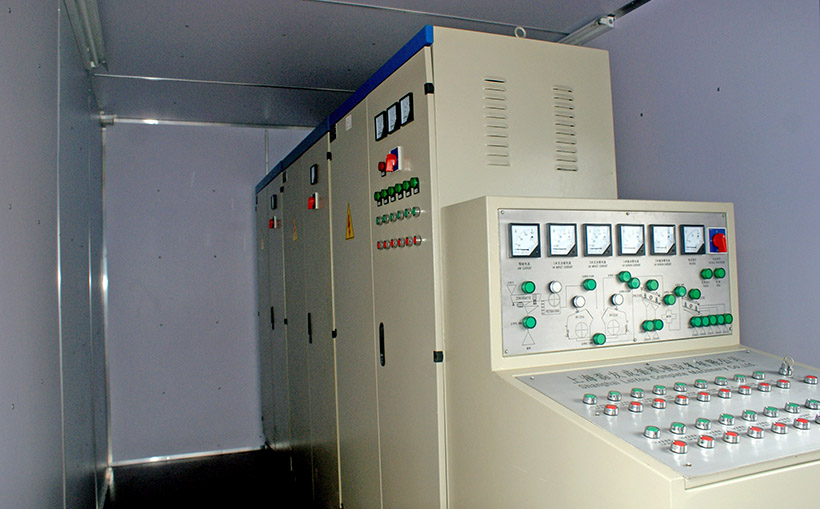

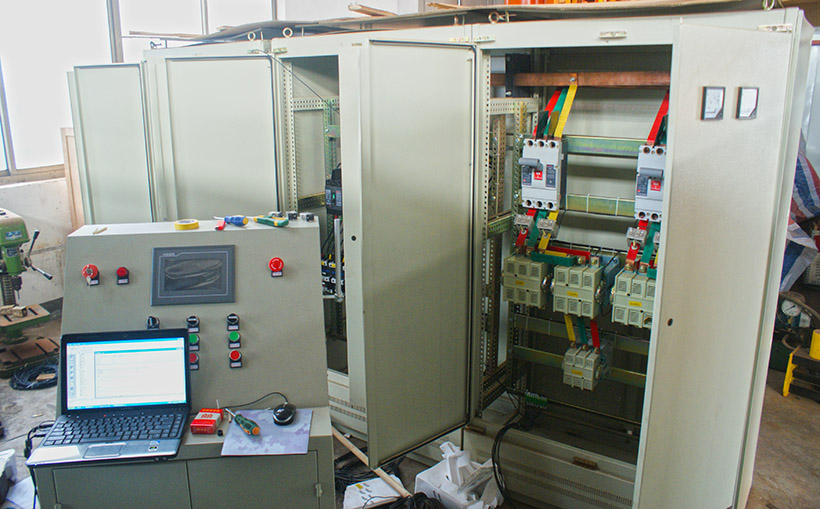

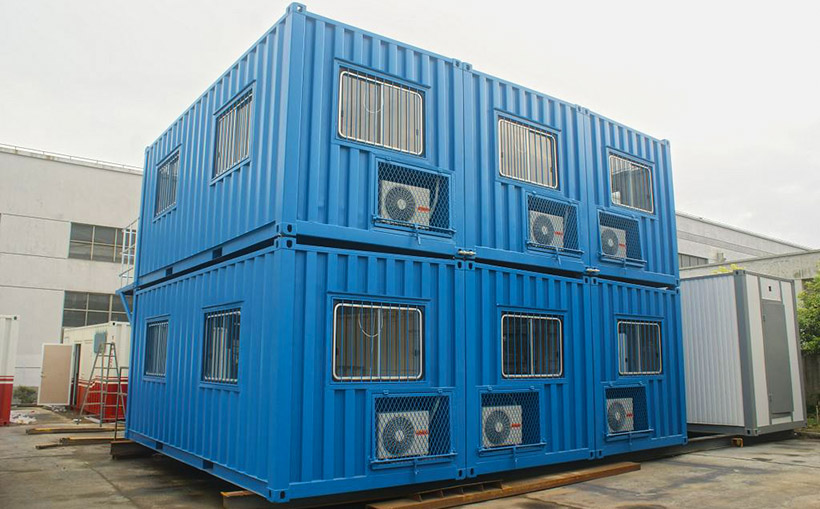

下面是各石料破碎生產線中,智能電控柜的現場生產圖(實拍):

二、產品功能特點

智能電控操作系統(電控柜)主要特點及可以實現的功能:

1、一鍵式啟動、停止生產線(One button start or stop of the production line.)

  • 在自動模式下,啟動設備只需要按一個按鈕,各個主機按照順序自動啟動;

    In auto mode, just press one button, all main machines will start in order.

  • 需要停機時,按下停機按鈕,設備按照程序停機;

    When needed, all machines will stop in order by just press STOP button.

  • 在檢修狀態,設備可以手動單個啟動,進行調試;

    In maintenance mode, each machine can be started alone for adjusting.

  • 具備手動按鈕備用系統,在觸摸屏不能正常工作的時,可以通過按鈕開關控制生產線。

    Standby manual control system. Production line can be controlled by button switch in case that the touch screen does not work properly.


2、設備正常運轉時智能監測設備的工作狀態(Intelligently monitoring working conditions of the equipment during normal running.)

  • 設備發生故障導致電機卡死時,系統根據電機所在的位置,自動停止與此設備相關聯的設備,

    When motor stops in case of equipment failure, the system will automatically stop all machines connected.

  • 通過主要機器的軸承溫度傳感器,反饋設備工作狀態;

    Working status can be monitored through temperature sensor of the bearing installed on the main machines.

  • 檢測各個主要主機電流和振動量(制砂機),處理器內部預設計算公式和標準負荷數據庫,判  斷生產線各個環節是否符合正常產量;

    Detect current of each main machine and vibration of sand making machine, and find out whether each unit works well or not through comparing data calculated by the default formula in the processor and standard load database

  • 現場監控自動存盤,生產線操作室和管理者辦公室具備視頻監控功能,實時監控現場的工作狀態,保證生產安全,監督工作狀態。并將影像信息保持存盤30天,管理員可以隨時調閱當月的每天工作狀態;

    Automatically save of on-site monitoring data. There have video monitoring system in both operating room and administrator’s office. They can live monitoring production status of the site, to ensure production safety and supervision of working conditions. Video data of the monitoring can be stored for 30 days, the administrator can review working status of everyday of the month anytime.

  • 生產線數據采集長期備份,管理員隨時可以調取各個時間段的工作情況,設備運轉情況;

    Life time backup for data of the production line collected. The administrator can review working conditions of the various periods of time and running status of the equipment.

  • 系統設置密碼進入,防止誤操作造成安全隱患。

    Password is set for log in to prevent potential security problem from improper operation.


3、日匯報和月匯報(Daily report and monthly report)

  • 生產線工作24小時后,會自動生成日匯報短信給管理者,包括日產能、電能消耗、當日工作總時間。

    Daily report including daily production capacity, power consumption, total working time of the day will be automatically generated and sent to the administrator via SMS every 24 hours of running of the production line.

  • 生產線工作30日后,會自動生成月匯報短信給管理者,包括月產能、月電能消耗、當月工作總時間。

    Monthly report of production capacity, power consumption and total working time will be automatically generated and sent to the administrator via SMS every 30 days of running of the production line.

三、性能參數

性能參數視具體生產線而定,如下圖:
